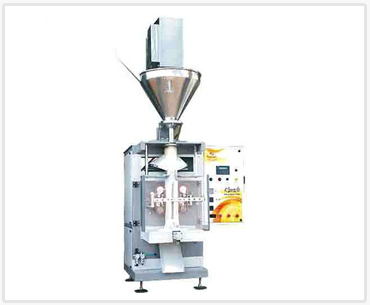

Pneumatic Auger Filler Machine

Pneumatic Auger Filler Machine

We are one of the leading names in the field of offering Auger Filler machine that are one of the most demanded form fill seal machines that feature high degree of working precision so as to successfully handle varied non free flowing powdered products. Also called powder packing machines, these find usage in meeting the packaging of products like Custard, Roasted Ground Coffee, Spice, Talcum, Detergent, Dyes, Pesticides and others. Being convenient & hygienic form of packaging and sealing, these machines are designed to deliver increased shelf life, lower waste disposal.

Offering easy handling to change for different pouch sizes, these can be offered in different filling range including 20-50 gms., 50-100 gms., 100-250 gms., 250-500 gms., 500-1000 gms. Further, thee can deliver operating speed of 35 to 50 filling per minute and consistent accuracy within permissible limits. Further, these can match up to the demands of different sealing types including 3 Side Sealing, 4 Side Sealing and Centre Sealing.

These machines can be used any heat seal-able laminated films like:

  • Polyester
  • Poly Paper
  • Foil
  • BOPP

Technical Specification:

  • Out Put – Up to 40 BPM
  • Filling Capacity – 5 gm – 1 kg
  • Filling Type – Servo Drives/ Clutch Brake Drives
  • Sealing Type – Fin Seal
  • Machine weight – 500 – 700 kg. (APPROX)
  • Machine Dimension – WIDTH – 750 mm, LENGTH – 1800 mm
  • Depth – 1050 mm. (ADJUSTABLE)
